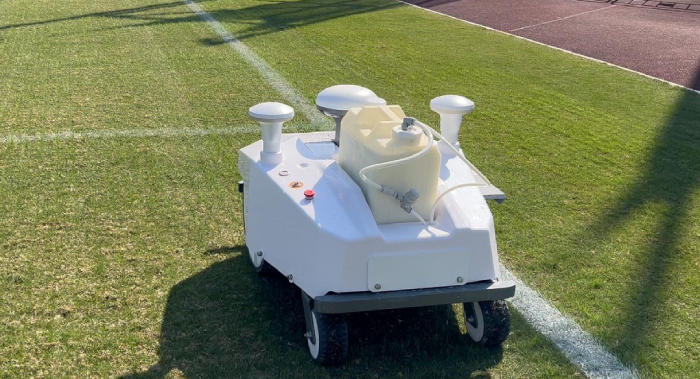

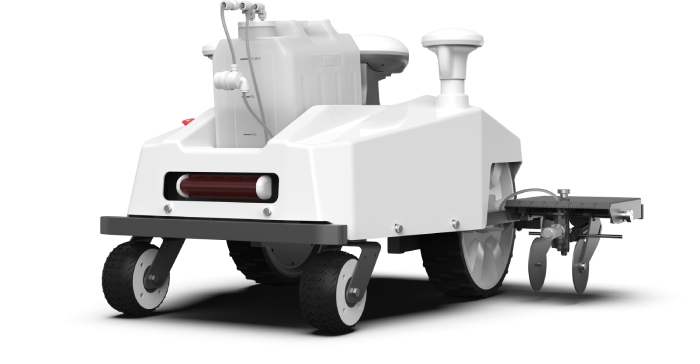

RLM01
The RLM01 PaintMaster Pro is a truly intelligent line-marking robot for athletic fields. It delivers centimeter-level accuracy through two industrial-grade GNSS positioning systems and a local base station. Providing great savings on time and labor costs, this robot is an ideal solution for any athletic field.
Impressive Feature Suite
Easy transportation
Convenient mapping
Precise Line Marking
Without RTK Signal
Fast Battery Swapping
7x24 Marking
Local Base Station
No Precision Fluctuation
Fleet
Management
Multi-Field
Management

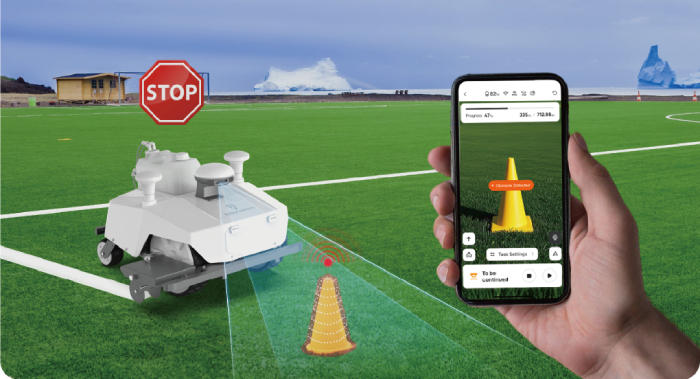

Real-Time App
Monitoring & Control
- Dimensions: 42.3” X 40.3” X 26.5”
- Weight (without paint): 162 lb
- Marking Speed: 0.6 - 1.9 mph
- Paint Bucket Capacity : 5 gal (expandable to 7 gal)
- Nozzle Above Ground: 1.2 - 4.3”
- Marking Width Range: 2.4 - 6.7”
- Max Operation Area Per Charge: 3.2 acres
- Battery Life (0.5 kWh Standard Battery): 5 h
- Charging Time (0.5 kWh Standard Battery): 2 h
- Highest possible marking accuracy
- Stable signals from local base station reduce the risk of signal drift

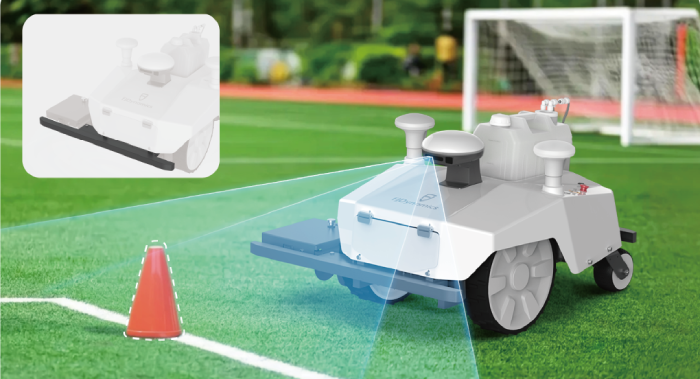

- Real-time visual monitoring plus front + rear bumper strips maintain safety during operation
- Lightweight and portable design for easy transportation
- Independent paint filling port for fast and convenient paint refills
- Easy paint bucket change for faster pipeline cleaning
- Removable structure makes it easy to repair and maintain. Versatile battery can be used to power other devices
